Getting Started with Blazor Chart Wizard Component in Server App

14 Mar 202614 minutes to read

This section briefly explains about how to include Blazor Chart Wizard component in your Blazor Server App using Visual Studio, Visual Studio Code, and the .NET CLI.

Ready to streamline your Syncfusion® Blazor development?
Discover the full potential of Syncfusion® Blazor components with Syncfusion® AI Coding Assistants. Effortlessly integrate, configure, and enhance your projects with intelligent, context-aware code suggestions, streamlined setups, and real-time insights—all seamlessly integrated into your preferred AI-powered IDEs like VS Code, Cursor, Syncfusion® CodeStudio and more. Explore Syncfusion® AI Coding Assistants

Prerequisites

Create a new Blazor App in Visual Studio

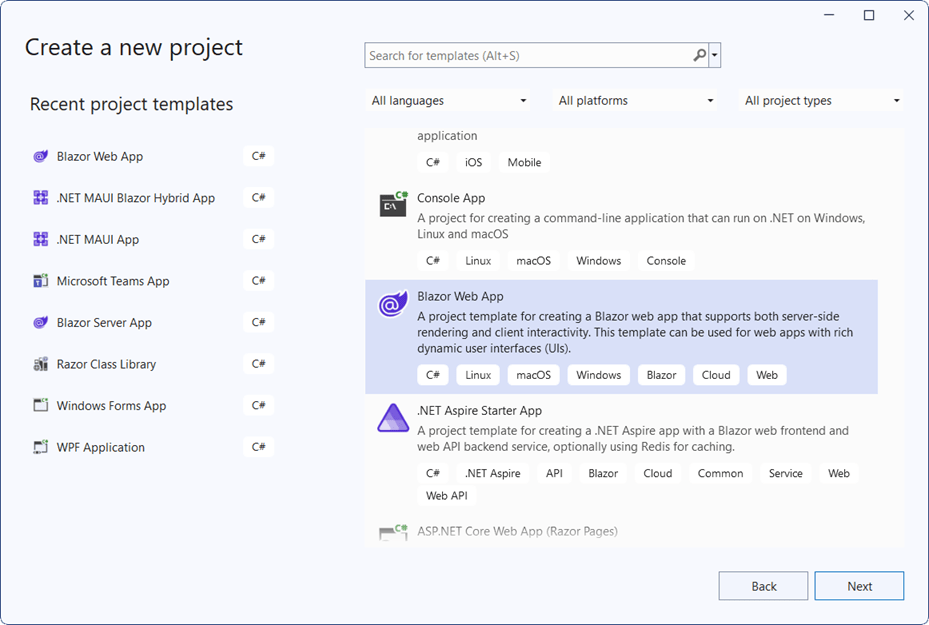

Create a Blazor Server App by using the Blazor Web App template in Visual Studio via Microsoft Templates or the Syncfusion® Blazor Extension. For detailed instructions, refer to this Blazor Server App Getting Started documentation.

Blazor Server App Creation Template

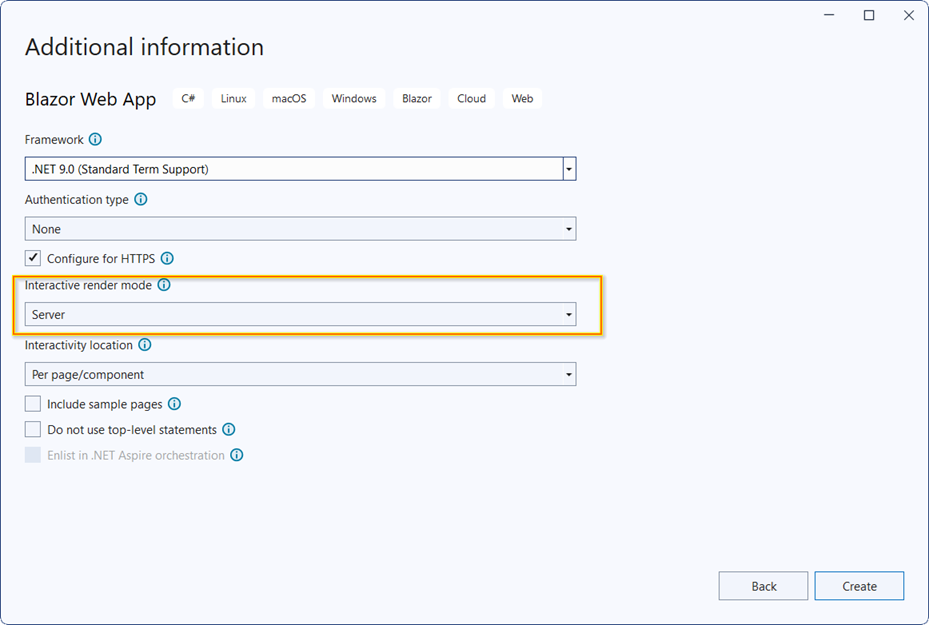

Configure the appropriate Interactive render mode and Interactivity location when creating a Blazor Server App.

Blazor Server App with Interactive Mode

Install Syncfusion® Blazor Chart Wizard NuGet in the App

To add the Blazor Chart Wizard component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), then search and install Syncfusion.Blazor.ChartWizard. Alternatively, run the following commands in the Package Manager Console to achieve the same.

Install-Package Syncfusion.Blazor.ChartWizard -Version 32.2.3

NOTE

Syncfusion® Blazor components are available in nuget.org. Refer to the NuGet packages topic for the available NuGet packages list with component details.

Prerequisites

Create a new Blazor App in Visual Studio Code

Create a Blazor Server App using Visual Studio Code via Microsoft Templates or the Syncfusion® Blazor Extension. For detailed instructions, refer to this Blazor Server App Getting Started documentation.

Alternatively, create a Server application by using the following command in the integrated terminal(Ctrl+`).

dotnet new blazor -o BlazorApp -int Server
cd BlazorApp

Install Syncfusion® Blazor Chart Wizard NuGet in the App

  • Press Ctrl+` to open the integrated terminal in Visual Studio Code.
  • Ensure in the project root directory where the .csproj file is located.
  • Run the following command to install a Syncfusion.Blazor.ChartWizard NuGet package and ensure all dependencies are installed.
dotnet add package Syncfusion.Blazor.ChartWizard -v 32.2.3
dotnet restore

NOTE

Syncfusion® Blazor components are available in nuget.org. Refer to the NuGet packages topic for the available NuGet packages list with component details.

Prerequisites

Install the latest version of .NET SDK. If the .NET SDK is already installed, determine the installed version by running the following command in a command prompt (Windows), terminal (macOS), or command shell (Linux).

dotnet --version

Create a Blazor Server App using .NET CLI

Run the following command to create a new Blazor Server App in a command prompt (Windows) or terminal (macOS) or command shell (Linux). For detailed instructions, refer to this Blazor Server App Getting Started documentation.

dotnet new blazor -o BlazorApp -int Server
cd BlazorApp

Install Syncfusion® Blazor Chart Wizard NuGet in the App

To add the Blazor Chart Wizard component to the application, run the following commands in a command prompt (Windows), command shell (Linux), or terminal (macOS) to install the Syncfusion.Blazor.ChartWizard NuGet package. See Install and manage packages using the dotnet CLI topics for more details.

dotnet add package Syncfusion.Blazor.ChartWizard -Version 32.2.3
dotnet restore

NOTE

Syncfusion® Blazor components are available in nuget.org. Refer to the NuGet packages topic for the available NuGet packages list with component details.

Add Import Namespaces

Open the ~/_Imports.razor file and import the Syncfusion.Blazor and Syncfusion.Blazor.ChartWizard namespaces.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.ChartWizard

Register Syncfusion® Blazor Service

Register the Syncfusion® Blazor Service in the ~/Program.cs file of the Blazor Server App.

....
....
using Syncfusion.Blazor;

var builder = WebApplication.CreateBuilder(args);

// Add services to the container.
....
....
builder.Services.AddSyncfusionBlazor();

....

Add script resources

The script can be accessed from NuGet through Static Web Assets. Include script reference at the end of the <body> in the App.razor file as shown below:

<body>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
    <!-- Blazor Chart Wizard Component script reference.-->
     <!-- <script src="_content/Syncfusion.Blazor.ChartWizard/scripts/sf-chart-wizard.min.js" type="text/javascript"></script> -->
</body>

NOTE

Check out the Adding Script Reference topic to learn different approaches for adding script references in the Blazor application.

Add Blazor Chart Wizard Component

Add the Syncfusion® Blazor Chart Wizard component in the ~/Components/Pages/Home.razor file. If the interactivity location is set to Per page/component, define a render mode at the top of the Home.razor page.

<SfChartWizard>

</SfChartWizard>
  • Press Ctrl+F5 (Windows) or ⌘+F5 (macOS) to launch the application. This will render the Syncfusion® Blazor Chart Wizard component in the default web browser.

Chart Wizard Default

Populate Blazor Chart Wizard data

To bind data for the chart wizard component, you can assign a IEnumerable object to the DataSource property.

public class OlympicsData
{
    public string? Country { get; set; }
    public string? CountryCode { get; set; }
    public int Gold { get; set; }
    public int Silver { get; set; }
    public int Bronze { get; set; }
}

private readonly List<OlympicsData> OlympicsDataSource = new()
{
    new OlympicsData { Country = "USA", CountryCode = "USA", Gold = 40, Silver = 44, Bronze = 42 },
    new OlympicsData { Country = "China", CountryCode = "CHN", Gold = 40, Silver = 27, Bronze = 24 },
    new OlympicsData { Country = "Great Britain", CountryCode = "GBR", Gold = 14, Silver = 22, Bronze = 29 },
    new OlympicsData { Country = "France", CountryCode = "FRA", Gold = 16, Silver = 26, Bronze = 22 },
    new OlympicsData { Country = "Australia", CountryCode = "AUS", Gold = 18, Silver = 19, Bronze = 16 },
    new OlympicsData { Country = "Japan", CountryCode = "JPN", Gold = 20, Silver = 12, Bronze = 13 },
    new OlympicsData { Country = "Italy", CountryCode = "ITA", Gold = 12, Silver = 13, Bronze = 15 },
    new OlympicsData { Country = "Netherlands", CountryCode = "NLD", Gold = 15, Silver = 7,  Bronze = 12 },
    new OlympicsData { Country = "Germany", CountryCode = "DEU", Gold = 12, Silver = 13, Bronze = 8  },
    new OlympicsData { Country = "South Korea", CountryCode = "KOR", Gold = 13, Silver = 9,  Bronze = 10 }
};

Now, populate the categories and chartSeries collections with the appropriate data defining the chart’s categories and series. Then, assign these values to the CategoryFields and SeriesFields properties of the ChartSettings, respectively.

NOTE

The default series type is Line. Use the SeriesType property to change the series type.

<div class="control-section">
    <SfChartWizard>
        <ChartSettings DataSource="@OlympicsDataSource"
                       CategoryFields="@categories"
                       SeriesType="ChartWizardSeriesType.Column"
                       SeriesFields="@chartSeries">
        </ChartSettings>
    </SfChartWizard>
</div>

@code {
    private readonly List<string> chartSeries = new() { "Gold", "Silver", "Bronze" };
    private readonly List<string> categories = new() { "Country", "CountryCode" };

    public class OlympicsData
    {
        public string? Country { get; set; }
        public string? CountryCode { get; set; }
        public int Gold { get; set; }
        public int Silver { get; set; }
        public int Bronze { get; set; }
    }

    private readonly List<OlympicsData> OlympicsDataSource = new()
    {
        new OlympicsData { Country = "USA", CountryCode = "USA", Gold = 40, Silver = 44, Bronze = 42 },
        new OlympicsData { Country = "China", CountryCode = "CHN", Gold = 40, Silver = 27, Bronze = 24 },
        new OlympicsData { Country = "Great Britain", CountryCode = "GBR", Gold = 14, Silver = 22, Bronze = 29 },
        new OlympicsData { Country = "France", CountryCode = "FRA", Gold = 16, Silver = 26, Bronze = 22 },
        new OlympicsData { Country = "Australia", CountryCode = "AUS", Gold = 18, Silver = 19, Bronze = 16 },
        new OlympicsData { Country = "Japan", CountryCode = "JPN", Gold = 20, Silver = 12, Bronze = 13 },
        new OlympicsData { Country = "Italy", CountryCode = "ITA", Gold = 12, Silver = 13, Bronze = 15 },
        new OlympicsData { Country = "Netherlands", CountryCode = "NLD", Gold = 15, Silver = 7,  Bronze = 12 },
        new OlympicsData { Country = "Germany", CountryCode = "DEU", Gold = 12, Silver = 13, Bronze = 8  },
        new OlympicsData { Country = "South Korea", CountryCode = "KOR", Gold = 13, Silver = 9,  Bronze = 10 }
    };
}

Chart Wizard Example

Theme

Blazor Chart Wizard has built-in themes that can be used to change the appearance of the chart.

Prerequisites

In order to apply same theme update for the overall Chart Wizard UI, include the same theme stylesheet (this can be accessed from NuGet through Static Web Assets) in the <head> tag in the App.razor file as shown below:

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/material3.css" rel="stylesheet" />
</head>

The Theme property is used to specify the visual theme applied to the chart.

<div class="control-section">
    <SfChartWizard Theme="Theme.Material3">
        <ChartSettings DataSource="@OlympicsDataSource"
                       CategoryFields="@categories"
                       SeriesType="ChartWizardSeriesType.Bar"
                       SeriesFields="@chartSeries">
        </ChartSettings>
    </SfChartWizard>
</div>

@code {
    private readonly List<string> chartSeries = new() { "Gold", "Silver", "Bronze" };
    private readonly List<string> categories = new() { "Country", "CountryCode" };

    public class OlympicsData
    {
        public string? Country { get; set; }
        public string? CountryCode { get; set; }
        public int Gold { get; set; }
        public int Silver { get; set; }
        public int Bronze { get; set; }
    }

    private readonly List<OlympicsData> OlympicsDataSource = new()
    {
        new OlympicsData { Country = "USA", CountryCode = "USA", Gold = 40, Silver = 44, Bronze = 42 },
        new OlympicsData { Country = "China", CountryCode = "CHN", Gold = 40, Silver = 27, Bronze = 24 },
        new OlympicsData { Country = "Great Britain", CountryCode = "GBR", Gold = 14, Silver = 22, Bronze = 29 },
        new OlympicsData { Country = "France", CountryCode = "FRA", Gold = 16, Silver = 26, Bronze = 22 },
        new OlympicsData { Country = "Australia", CountryCode = "AUS", Gold = 18, Silver = 19, Bronze = 16 },
        new OlympicsData { Country = "Japan", CountryCode = "JPN", Gold = 20, Silver = 12, Bronze = 13 },
        new OlympicsData { Country = "Italy", CountryCode = "ITA", Gold = 12, Silver = 13, Bronze = 15 },
        new OlympicsData { Country = "Netherlands", CountryCode = "NLD", Gold = 15, Silver = 7,  Bronze = 12 },
        new OlympicsData { Country = "Germany", CountryCode = "DEU", Gold = 12, Silver = 13, Bronze = 8  },
        new OlympicsData { Country = "South Korea", CountryCode = "KOR", Gold = 13, Silver = 9,  Bronze = 10 }
    };
}

Chart Wizard appearance - theme
