Getting Started with Blazor Gantt Chart Component in Web App

18 Sep 202422 minutes to read

This section briefly explains about how to include Blazor Gantt Chart component in your Blazor Web App using Visual Studio.

Prerequisites

System requirements for Blazor components

Create a new Blazor Web App

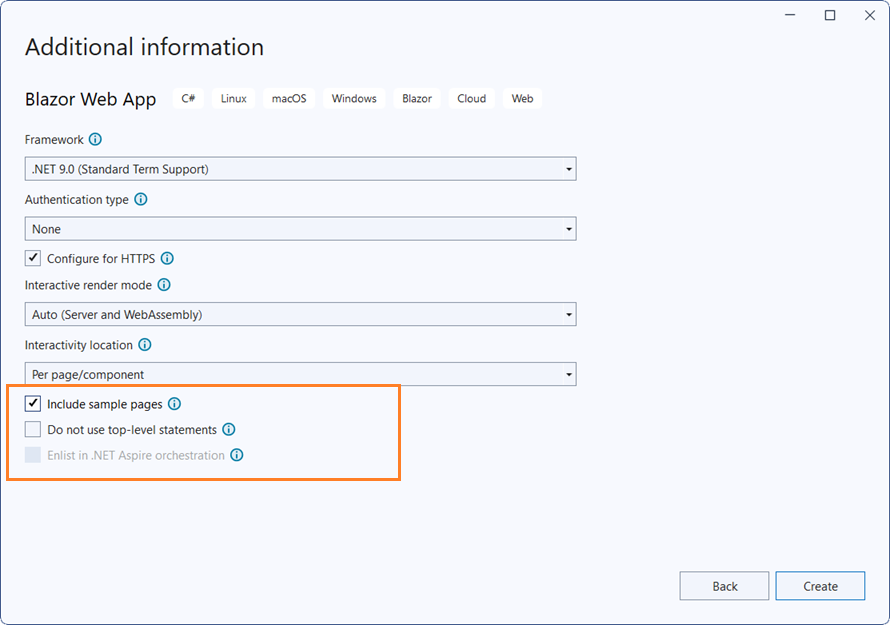

You can create a Blazor Web App using Visual Studio 2022 via Microsoft Templates or the Syncfusion Blazor Extension.

You need to configure the corresponding Interactive render mode and Interactivity location while creating a Blazor Web Application.

Install Syncfusion Blazor Gantt and Themes NuGet in the Blazor Web App

To add Blazor Gantt Chart component in the app, open the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install Syncfusion.Blazor.Gantt and Syncfusion.Blazor.Themes.

If you utilize WebAssembly or Auto render modes in the Blazor Web App need to be install Syncfusion Blazor components NuGet packages within the client project.

Alternatively, you can utilize the following package manager command to achieve the same.

Package Manager
Install-Package Syncfusion.Blazor.Gantt -Version 27.2.2
Install-Package Syncfusion.Blazor.Themes -Version 27.2.2

NOTE

Syncfusion Blazor components are available in nuget.org. Refer to NuGet packages topic for available NuGet packages list with component details.

Register Syncfusion Blazor Service

Open ~/_Imports.razor file and import the Syncfusion.Blazor and Syncfusion.Blazor.Gantt namespace.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.Gantt

Now, register the Syncfusion Blazor Service in the ~/Program.cs file of your Blazor Web App. For a app with WebAssembly or Auto (Server and WebAssembly) interactive render mode, register the Syncfusion Blazor service in both ~/Program.cs files of your web app.

....
using Syncfusion.Blazor;
....
builder.Services.AddSyncfusionBlazor();
....

Add stylesheet and script resources

The theme stylesheet and script can be accessed from NuGet through Static Web Assets. Include the stylesheet reference in the <head> section and the script reference at the end of the <body> in the ~/Components/App.razor file as shown below:

<head>
    ....
    <link href="_content/Syncfusion.Blazor.Themes/bootstrap5.css" rel="stylesheet" />
</head>
....
<body>
    ....
    <script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>
</body>

NOTE

Check out the Blazor Themes topic to discover various methods (Static Web Assets, CDN, and CRG) for referencing themes in your Blazor application. Also, check out the Adding Script Reference topic to learn different approaches for adding script references in your Blazor application.

Add Syncfusion Blazor Gantt Chart component

Add the Syncfusion Blazor Gantt Chart component in .razor file inside the Pages folder. If an interactivity location as Per page/component in the web app, define a render mode at top of the component, as follows:

RAZOR

@* desired render mode define here *@
@rendermode InteractiveAuto

RAZOR
<SfGantt DataSource="@TaskCollection" Height="450px" Width="700px">
    <GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress" ParentID="ParentId">
    </GanttTaskFields>
    <GanttColumns>
        <GanttColumn Field="TaskId" HeaderText="Task ID"></GanttColumn>
        <GanttColumn Field="TaskName" HeaderText="Task Name"></GanttColumn>
        <GanttColumn Field="StartDate" HeaderText="Start Date"></GanttColumn>
        <GanttColumn Field="Duration" HeaderText="Duration"></GanttColumn>
        <GanttColumn Field="Progress" HeaderText="Progress"></GanttColumn>
    </GanttColumns>
</SfGantt>

@code{
    private List<TaskData> TaskCollection { get; set; }
    protected override void OnInitialized()
    {
        this.TaskCollection = GetTaskCollection();
    }

    public class TaskData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public DateTime StartDate { get; set; }
        public DateTime EndDate { get; set; }
        public string Duration { get; set; }
        public int Progress { get; set; }
        public int? ParentId { get; set; }
    }

    public static List<TaskData> GetTaskCollection()
    {
        List<TaskData> Tasks = new List<TaskData>() {
            new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
            new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 },
            new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 }
        };
        return Tasks;
    }
}

Binding Gantt Chart with Data and Mapping Task Fields

Bind data with the Gantt Chart component by using the DataSource property. It accepts the list objects or the DataManager instance.

Additionally, task-related fields from the data source are mapped to the Gantt Chart component using the GanttTaskFields property. This property ensures that the necessary task fields, such as Id, Name, StartDate, EndDate, Duration, and ParentID are properly linked to the corresponding data source fields, allowing the Gantt Chart to render tasks accurately. The columns in the Gantt Chart are automatically rendered based on the properties specified in GanttTaskFields, ensuring that the necessary columns are displayed to represent the task data.

This following sample shows self-referential data binding in the Gantt Chart by mapping the data source fields to the Id and ParentID properties. For more detailed information, refer to the documentation.

RAZOR
<SfGantt DataSource="@TaskCollection" Height="450px" Width="700px">
    <GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress" ParentID="ParentId">
    </GanttTaskFields>
</SfGantt>

@code{
    private List<TaskData> TaskCollection { get; set; }
    protected override void OnInitialized()
    {
        this.TaskCollection = GetTaskCollection();
    }

    public class TaskData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public DateTime StartDate { get; set; }
        public DateTime EndDate { get; set; }
        public string Duration { get; set; }
        public int Progress { get; set; }
        public int? ParentId { get; set; }
    }

    public static List<TaskData> GetTaskCollection()
    {
        List<TaskData> Tasks = new List<TaskData>() {
            new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
            new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 },
            new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 }
        };
        return Tasks;
    }
}

Defining columns

Gantt Chart has an option to define columns as an array. You can manage the order and customize the Gantt Chart columns using the following properties:

Field: Maps the data source fields to the columns.
HeaderText: Changes the title of columns.
TextAlign: Changes the alignment of columns. By default, columns will be left aligned. To change the columns to right align, set TextAlign to right.
Format: Formats the number and date values to standard or custom formats. Here, it is defined for the conversion of numeric values to currency.
Visible: Show or hide a particular column. By default, columns are visible. Set this property to false to hide the column or true to make it visible.
Width: To specify the width of the column, which can be defined in pixels or as a percentage of the total column width.

RAZOR
@using Syncfusion.Blazor.Grids

<SfGantt DataSource="@TaskCollection" Height="450px" Width="700px">
    <GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress" ParentID="ParentId">
    </GanttTaskFields>
    <GanttColumns>
        <GanttColumn Field="TaskId" HeaderText="Task ID" TextAlign="TextAlign.Right" Width="100"></GanttColumn>
        <GanttColumn Field="TaskName" HeaderText="Task Name" Width="250"></GanttColumn>
        <GanttColumn Field="StartDate" HeaderText="Start Date" Width="250"></GanttColumn>
        <GanttColumn Field="Duration" HeaderText="Duration" Width="250"></GanttColumn>
        <GanttColumn Field="Progress" HeaderText="Progress" Format="@NumberFormat" Width="250"></GanttColumn>
    </GanttColumns>
</SfGantt>

@code{
    private List<TaskData> TaskCollection { get; set; }
    private string NumberFormat = "C";
    protected override void OnInitialized()
    {
        this.TaskCollection = GetTaskCollection();
    }

    public class TaskData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public DateTime StartDate { get; set; }
        public DateTime EndDate { get; set; }
        public string Duration { get; set; }
        public int Progress { get; set; }
        public int? ParentId { get; set; }
    }

    public static List<TaskData> GetTaskCollection()
    {
        List<TaskData> Tasks = new List<TaskData>() {
            new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
            new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 },
            new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 }
        };
        return Tasks;
    }
}

For further details regarding columns, refer here.

Enable editing

The editing feature enables you to edit the tasks in the Gantt Chart component. It can be enabled by using the EditSettings.AllowEditing and EditSettings.AllowTaskbarEditing properties.

RAZOR
<SfGantt DataSource="@TaskCollection" Height="450px" Width="700px">
    <GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress" ParentID="ParentId">
    </GanttTaskFields>
    <GanttEditSettings AllowEditing="true" Mode="Syncfusion.Blazor.Gantt.EditMode.Auto" AllowTaskbarEditing="true"></GanttEditSettings>
</SfGantt>

@code{
    private List<TaskData> TaskCollection { get; set; }
    protected override void OnInitialized()
    {
        this.TaskCollection = GetTaskCollection();
    }

    public class TaskData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public DateTime StartDate { get; set; }
        public DateTime EndDate { get; set; }
        public string Duration { get; set; }
        public int Progress { get; set; }
        public int? ParentId { get; set; }
    }

    public static List<TaskData> GetTaskCollection()
    {
        List<TaskData> Tasks = new List<TaskData>() {
            new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
            new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 },
            new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 }
        };
        return Tasks;
    }
}

NOTE

When the edit mode is set to Auto, you can change the cells to editable mode by double-clicking anywhere at the Tree Grid and edit the task details in the edit dialog by double-clicking anywhere at the chart.

You can find the full information regarding Editing from here

Enable filtering

The filtering feature enables you to view the reduced amount of records based on filter criteria. Gantt Chart provides the menu filtering support for each column. It can be enabled by setting the AllowFiltering property to true. Filtering feature can also be customized using the FilterSettings property.

RAZOR
<SfGantt DataSource="@TaskCollection" Height="450px" Width="700px" AllowFiltering="true">
    <GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress" ParentID="ParentId">
    </GanttTaskFields>
</SfGantt>

@code{
    private List<TaskData> TaskCollection { get; set; }
    protected override void OnInitialized()
    {
        this.TaskCollection = GetTaskCollection();
    }

    public class TaskData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public DateTime StartDate { get; set; }
        public DateTime EndDate { get; set; }
        public string Duration { get; set; }
        public int Progress { get; set; }
        public int? ParentId { get; set; }
    }

    public static List<TaskData> GetTaskCollection()
    {
        List<TaskData> Tasks = new List<TaskData>() {
            new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
            new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 },
            new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 }
        };
        return Tasks;
    }
}

You can find the full information regarding Filtering from here

Enable sorting

The sorting feature enables you to order the records. It can be enabled by setting the AllowSorting property to true. The sorting feature can be customized using the SortSettings property.

RAZOR
<SfGantt DataSource="@TaskCollection" Height="450px" Width="700px" AllowSorting="true">
    <GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress" ParentID="ParentId">
    </GanttTaskFields>
</SfGantt>

@code{
    private List<TaskData> TaskCollection { get; set; }
    protected override void OnInitialized()
    {
        this.TaskCollection = GetTaskCollection();
    }

    public class TaskData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public DateTime StartDate { get; set; }
        public DateTime EndDate { get; set; }
        public string Duration { get; set; }
        public int Progress { get; set; }
        public int? ParentId { get; set; }
    }

    public static List<TaskData> GetTaskCollection()
    {
        List<TaskData> Tasks = new List<TaskData>() {
            new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
            new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 },
            new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 }
        };
        return Tasks;
    }
}

You can find the full information regarding Sorting from here

NOTE

View Sample in GitHub.

Enabling Predecessors or Task Relationships

Predecessor or task dependency in the Gantt Chart component is used to depict the relationship between the tasks.

Start to Start (SS): You cannot start a task until the dependent task starts.
Start to Finish (SF): You cannot finish a task until the dependent task finishes.
Finish to Start (FS): You cannot start a task until the dependent task completes.
Finish to Finish (FF): You cannot finish a task until the dependent task completes.
You can show the relationship in tasks by using the Dependency property as shown in the following code example.

RAZOR
<SfGantt DataSource="@TaskCollection" Height="450px" Width="700px">
    <GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration" Progress="Progress" ParentID="ParentId" Dependency="Predecessor">
    </GanttTaskFields>
</SfGantt>

@code{
    private List<TaskData> TaskCollection { get; set; }
    protected override void OnInitialized()
    {
        this.TaskCollection = GetTaskCollection();
    }

    public class TaskData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public DateTime StartDate { get; set; }
        public DateTime EndDate { get; set; }
        public string Duration { get; set; }
        public int Progress { get; set; }
        public string Predecessor { get; set; }
        public int? ParentId { get; set; }
    }

    public static List<TaskData> GetTaskCollection()
    {
        List<TaskData> Tasks = new List<TaskData>() {
            new TaskData() { TaskId = 1, TaskName = "Project initiation", StartDate = new DateTime(2022, 04, 05), EndDate = new DateTime(2022, 04, 21), },
            new TaskData() { TaskId = 2, TaskName = "Identify Site location", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1 },
            new TaskData() { TaskId = 3, TaskName = "Perform soil test", StartDate = new DateTime(2022, 04, 05), Duration = "4", Progress = 50, ParentId = 1, Predecessor = "2" }
        };
        return Tasks;
    }
}

You can find the full information regarding Predecessors from here

Handling exceptions

Exception handling in Blazor Gantt Chart is crucial for identifying errors, displaying error messages, and devising recovery strategies. You can access error messages and exception details via the
OnActionFailure event.

Common Errors and Their Resolutions:

ResourceFields Configuration Error

Ensure that the ResourceFields are properly configured by following the guidelines in the Resource View documentation.
GanttTaskFields Configuration Error

Ensure that the GanttTaskFields are properly configured by following the guidelines in the Hierarchical Data Binding documentation.
HasChildMapping Configuration Error

Ensure that the HasChildMapping property is properly configured for load-on-demand by following the guidelines in the Load Child On Demand documentation.
GanttSegmentFields.StartDate Configuration Error

Ensure that the GanttSegmentFields.StartDate field is properly configured by following the guidelines in the Split Task documentation.

The argument passed to the OnActionFailure event contains the error details returned from the server.

NOTE

We recommend you bind the OnActionFailure event during your application development phase, this helps you to find any exceptions. You can pass these exception details to our support team to get a solution as early as possible.

The following sample code demonstrates how to notify the user when a server-side exception occurs during a data operation:

RAZOR
@using Syncfusion.Blazor
@using Syncfusion.Blazor.Data
@using Syncfusion.Blazor.Gantt
@using Syncfusion.Blazor.Grids

<span class="error">@ErrorDetails</span>
<SfGantt TValue="TaskData" Height="450px" Width="700px">
     <SfDataManager Url="https://some.com/invalidUrl" Adaptor="Adaptors.UrlAdaptor"></SfDataManager>
    <GanttTaskFields Id="TaskId" Name="TaskName" StartDate="StartDate" EndDate="EndDate" Duration="Duration"
        Progress="Progress" ParentID="ParentId">
    </GanttTaskFields>
    <GanttEvents TValue="TaskData" OnActionFailure="ActionFailure"></GanttEvents>
</SfGantt>

<style>
    .error {
        color: red;
    }
</style>

@code{
    private string ErrorDetails = "";
    public class TaskData
    {
        public int TaskId { get; set; }
        public string TaskName { get; set; }
        public DateTime? StartDate { get; set; }
        public DateTime? EndDate { get; set; }
        public string Duration { get; set; }
        public int Progress { get; set; }
        public int? ParentId { get; set; }
    }

    public void ActionFailure(FailureEventArgs args)
    {
        this.ErrorDetails = args.Error.Message.ToString();
        StateHasChanged();
    }
}
