Shapefile in Blazor Maps Component

21 Dec 20235 minutes to read

The shapefile is a popular geospatial vector data format for storing location-based information such as shapes, spatial locations, and pertinent properties of geographic landmarks.

Importing and viewing shapefile

The shapefile can be used to render vector shape map in the Maps component by specifying the shapefile’s remotely hosted file path in the MapsLayer’s ShapeData property.

Only shapefiles hosted on a remote server are currently supported by our Maps component.

@using Syncfusion.Blazor.Maps

<div class="control-section">
    <SfMaps>
        <MapsAreaSettings Background="transparent" />
        <MapsLayers>
            <MapsLayer ShapeData='new {dataOptions = "https://cdn.syncfusion.com/maps/map-data/usa-states.shp"}' TValue="string">
                <MapsMarkerClusterSettings AllowClustering="true" AllowClusterExpand="true" Shape="MarkerType.Circle" Height="40" Width="40">
                    <MapsLayerMarkerClusterLabelStyle Color="#FFFFFF" />
                    <MapsLayerMarkerClusterConnectorLineSettings Color="#000000" />
                </MapsMarkerClusterSettings>
                <MapsMarkerSettings>
                    <MapsMarker Visible="true" TValue="TopUniversitiesDetails" Height=15 Width=15 DataSource="@TopUniversities" Shape="MarkerType.Circle" Fill="red" AnimationDuration="0">
                        <MapsMarkerTooltipSettings Visible="true" ValuePath="Name">
                            <MapsMarkerTooltipTextStyle FontFamily="inherit"></MapsMarkerTooltipTextStyle>
                        </MapsMarkerTooltipSettings>
                    </MapsMarker>
                </MapsMarkerSettings>
                <MapsShapeSettings Fill="#A6A6A6"></MapsShapeSettings>
            </MapsLayer>
        </MapsLayers>
        <MapsZoomSettings Enable="false" />
        <MapsLegendSettings Visible="false" />
    </SfMaps>
</div>

@code {
    public class TopUniversitiesDetails
    {
        public double Latitude { get; set; }
        public double Longitude { get; set; }
        public string Name { get; set; }
        public string Color { get; set; }
    };
    public List<TopUniversitiesDetails> TopUniversities = new List<TopUniversitiesDetails> {
        new TopUniversitiesDetails { Name="University of Washington", Latitude=47.655548, Longitude=-122.303200 , Color = "#623e8c" },
        new TopUniversitiesDetails { Name="CUNY Brooklyn College", Latitude=40.631920, Longitude= -73.952904, Color="#45738a" },
        new TopUniversitiesDetails { Name="Purdue University", Latitude=40.425869, Longitude=-86.908066, Color="#5fb8ad" },
        new TopUniversitiesDetails { Name="University of Florida", Latitude=29.643946, Longitude=-82.355659, Color="#5fb87b" },
        new TopUniversitiesDetails { Name="Oklahoma State University", Latitude=35.471901, Longitude=-97.581794, Color="#99b85f" },
        new TopUniversitiesDetails { Name="University of North Carolina at Chapel Hill", Latitude=35.904613, Longitude=-79.046761, Color="#a1931a" },
        new TopUniversitiesDetails { Name="California State University-Long Beach", Latitude=33.783823, Longitude=-118.114090, Color="#a1501a" },
        new TopUniversitiesDetails { Name="California State University-Los Angeles", Latitude=34.022415, Longitude=-118.285530, Color="#db4040" },
        new TopUniversitiesDetails { Name="Indiana University-Bloomington", Latitude=39.168804, Longitude=-86.536659, Color="#e227e8" },
        new TopUniversitiesDetails { Name="University of Illinois at Chicago", Latitude=41.789722, Longitude=-87.599724, Color="#0dff00" }
    };
}

Shapefile rendered in Blazor Maps

Multilayer

The shapefile map, like GeoJSON map, can be rendered in a multilayer structure, as described in this section. The shapefile map can be added to different layers in the ways listed below.

  1. The shapefile map can be displayed as a sublayer over the online map providers.
  2. The shapefile map can be displayed as a sublayer above the GeoJSON map.
  3. The GeoJSON map can be displayed as a sublayer over the shapefile map.
  4. Shapefiles can be displayed as both main and sublayer layers.

The following example demonstrates how to display the shapefile map as a sublayer above the GeoJSON map.

@using Syncfusion.Blazor.Maps;

<SfMaps>
    <MapsLayers>
        <MapsLayer ShapeData='new {dataOptions= "https://cdn.syncfusion.com/maps/map-data/world-map.json"}' TValue="string">
        </MapsLayer>
        <MapsLayer ShapeData='new {dataOptions = "https://cdn.syncfusion.com/maps/map-data/usa-states.shp"}'
                   Type="Syncfusion.Blazor.Maps.Type.SubLayer" TValue="string">
            <MapsShapeSettings Fill="blue"></MapsShapeSettings>
        </MapsLayer>
    </MapsLayers>
</SfMaps>

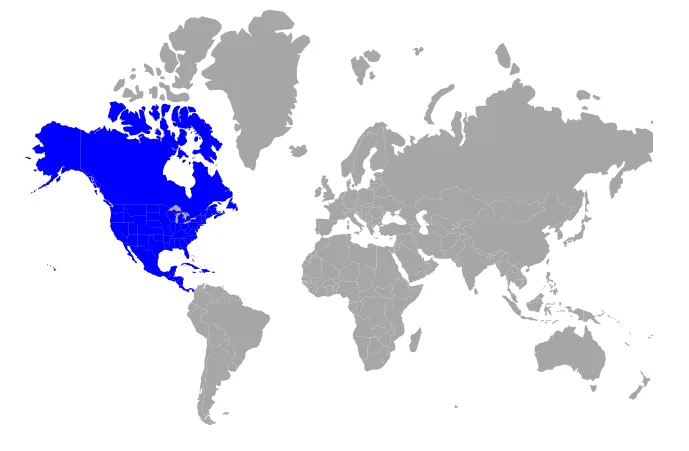

Multilayer in Blazor Maps

Customization

The characteristics of the shapes in the shapefile map, such as fill color, border, projection type, and so on, can be modified. This link will teach you more about customizing shapes in the Maps component.

All of the functions listed in the link above will be demonstrated using the GeoJSON file. Replace the GeoJSON file path with the shapefile’s file path to see a demonstration of these functions.

Other supportive features

The shapefile map supports the feature sets listed below, and you can learn more about them by following the links.

  1. Color mapping
  2. Data labels
  3. Polygons
  4. Markers
  5. Bubbles
  6. Legend
  7. Navigation lines
  8. Annotations
  9. User interactions
  10. Print and Export

All of the functions listed in the links above will be demonstrated using the GeoJSON file. Replace the GeoJSON file path with the shapefile’s file path to see a demonstration of these functions.
